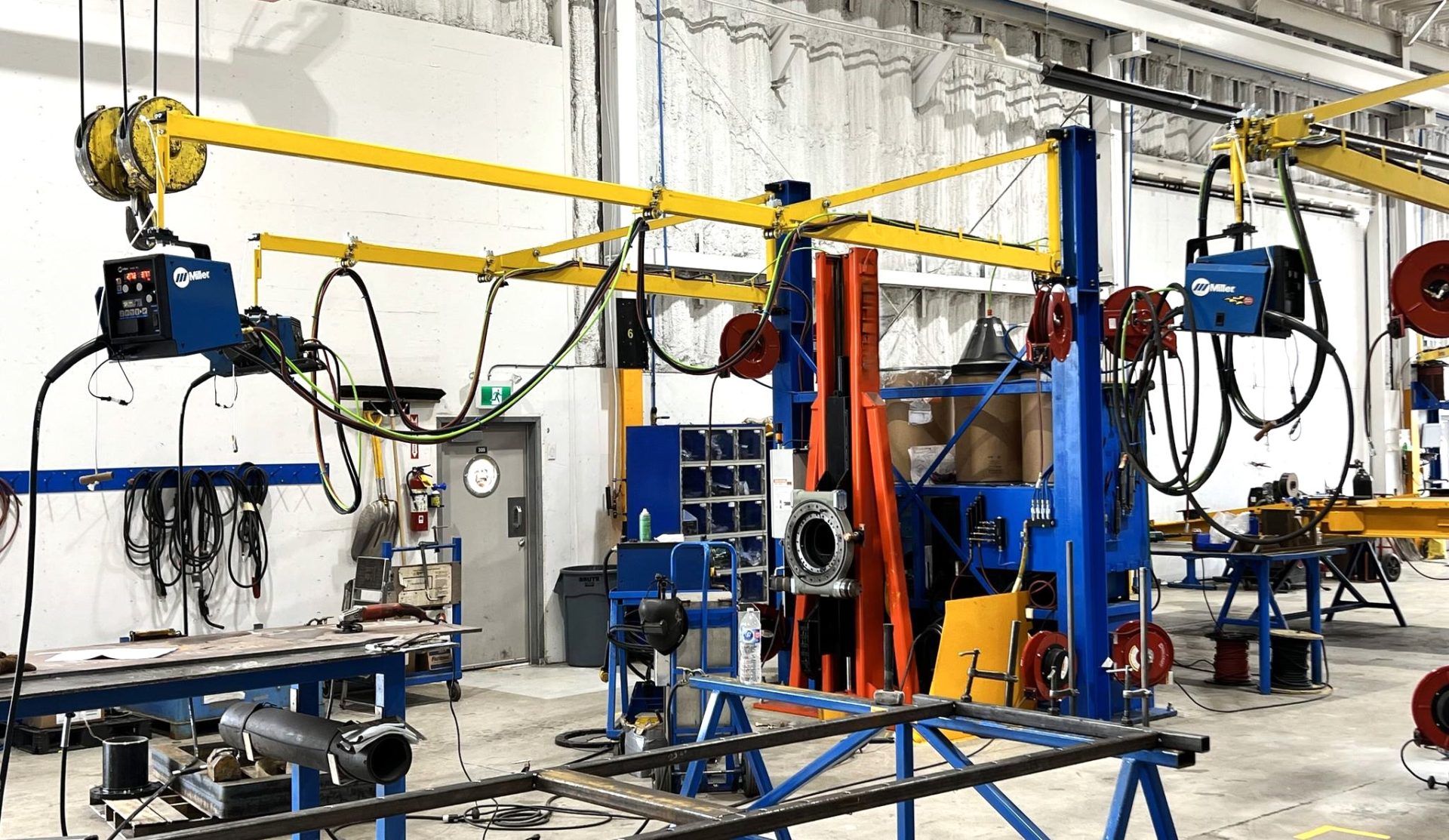

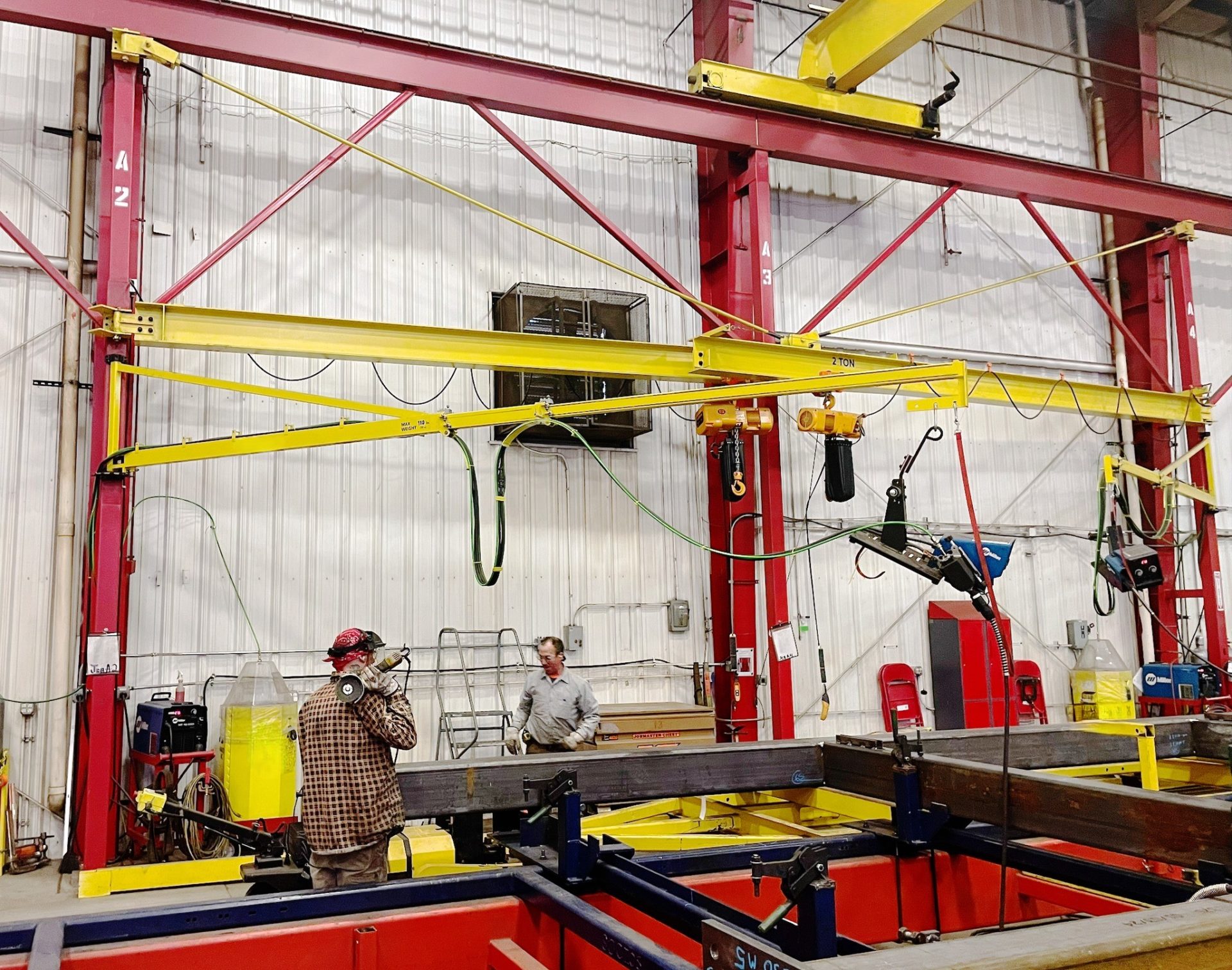

Wall mounted pivot wire feeder boom

The Wall Mounted Pivot Wire Feeder streamlines operations in large fabrication facilities by eliminating cumbersome equipment transfers and enhancing welder mobility.

This pivot joint wire feeder boom is designed to effortlessly support and position welding wire feeder units. With an adjustable reach ranging from 121’’ (3100 mm) to 235’’ (6000 mm), and a 180° rotation capability around the vertical axis, it offers unparalleled versatility.

Featuring two frame options – welded or bolted – for convenient self-assembly upon shipping, and two adjustable ranges of movable arms (up to approximately 6000 mm or 8000 mm), as well as two holder types (R type or L type), there are eight unique models available to cater to diverse operational needs.

  • can rotate up to 180° around the vertical axis
  • additionally, the movable arm can be rotated up to 180° around the pivot
  • two types of frames: either welded or bolted for self-assembly after shipping
  • adjustable reach of the movable arm: up to ca 6000 mm
  • two types of holders: either R type or L type
  • four various models altogether
Wall mounted pivot wire feeder boom

Especificaciones Técnicas

PIVOTFrameReach (R1 - R2)RotationMax. loadWeightHolder typeProduct code
WP6000 WLWelded2830–5940 mm0–180°50 kg100 kgLWSG-0725-10-00-01-0
WP6000 WRWelded2890–6000 mm0–180°50 kg100 kgRWSG-0725-10-00-02-0
WP6000 BLBolted2840–5980 mm0–180°50 kg110 kgLWSG-0745-10-00-00-0
WP6000 BRBolted2890–6030 mm0–180°50 kg110 kgRWSG-0745-10-00-01-0

Descriptive Alt Text

Wall mounted pivot wire feeder boom

2.29 MB
Descargar PDF
