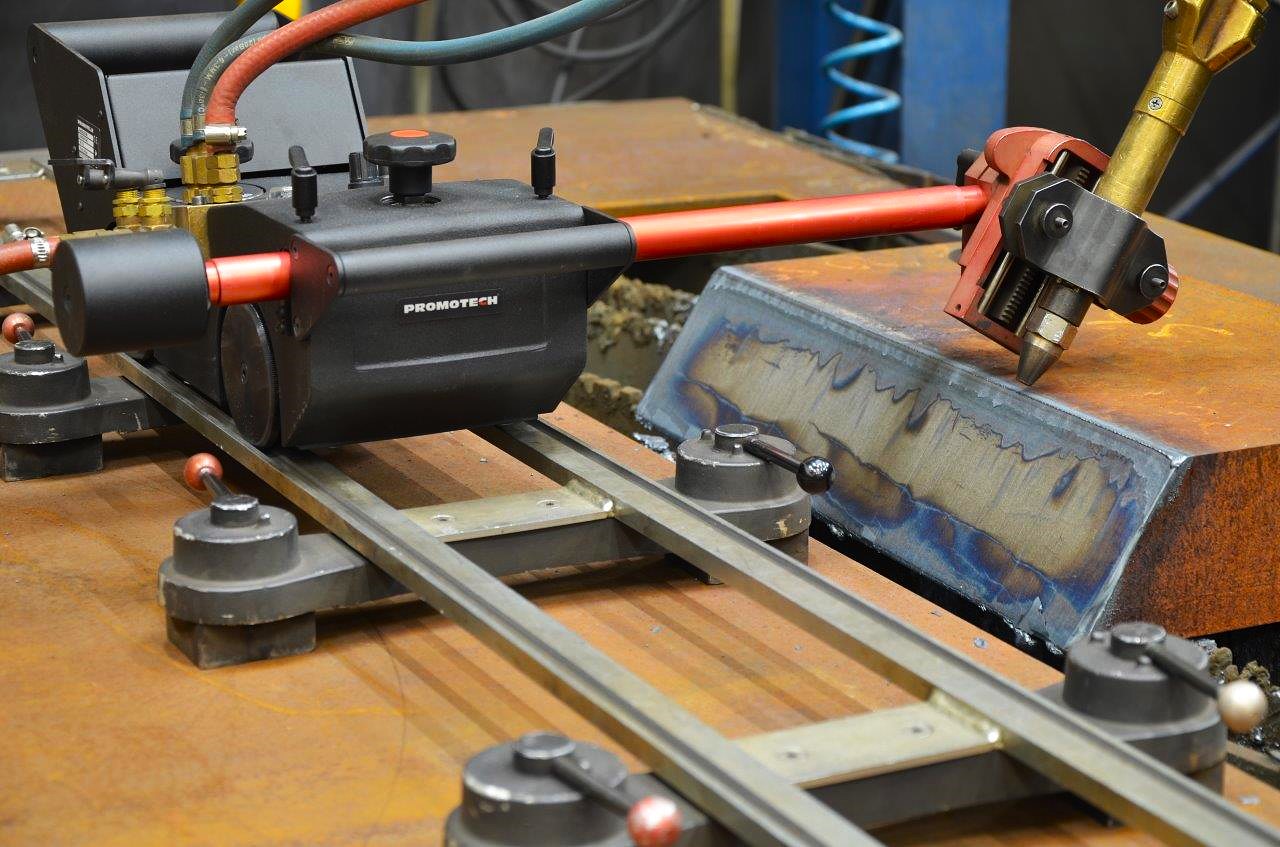

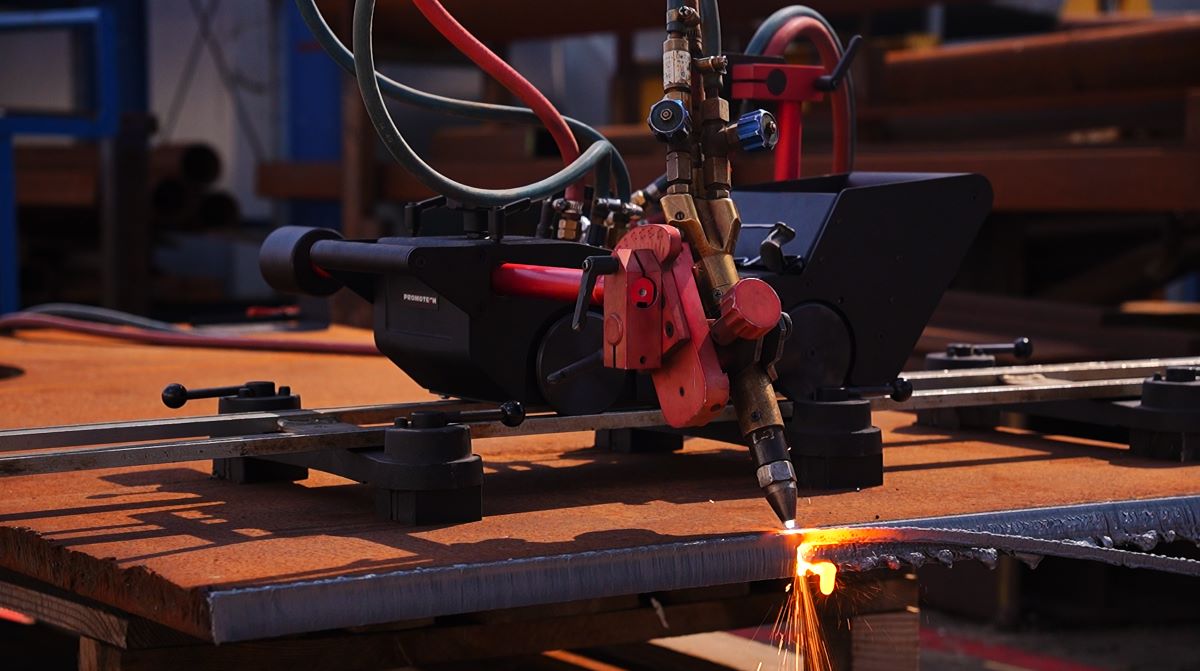

Dragon Battery | Cordless Cutting Tractor

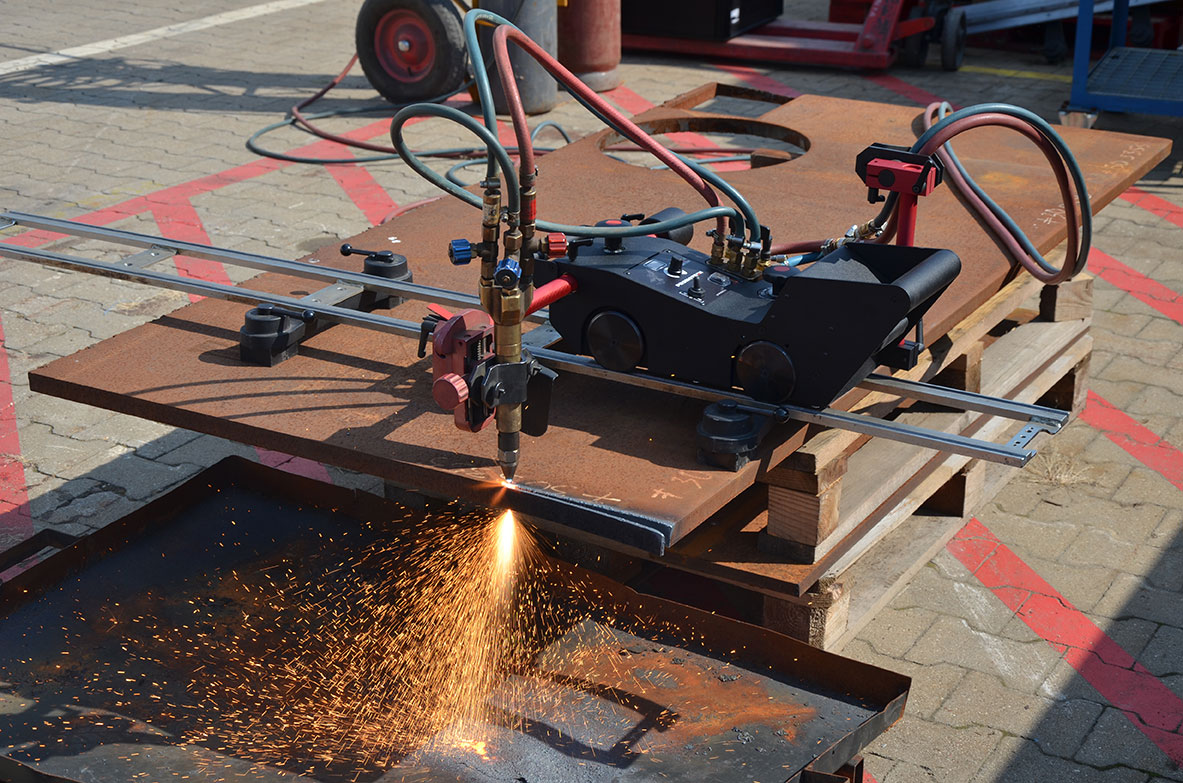

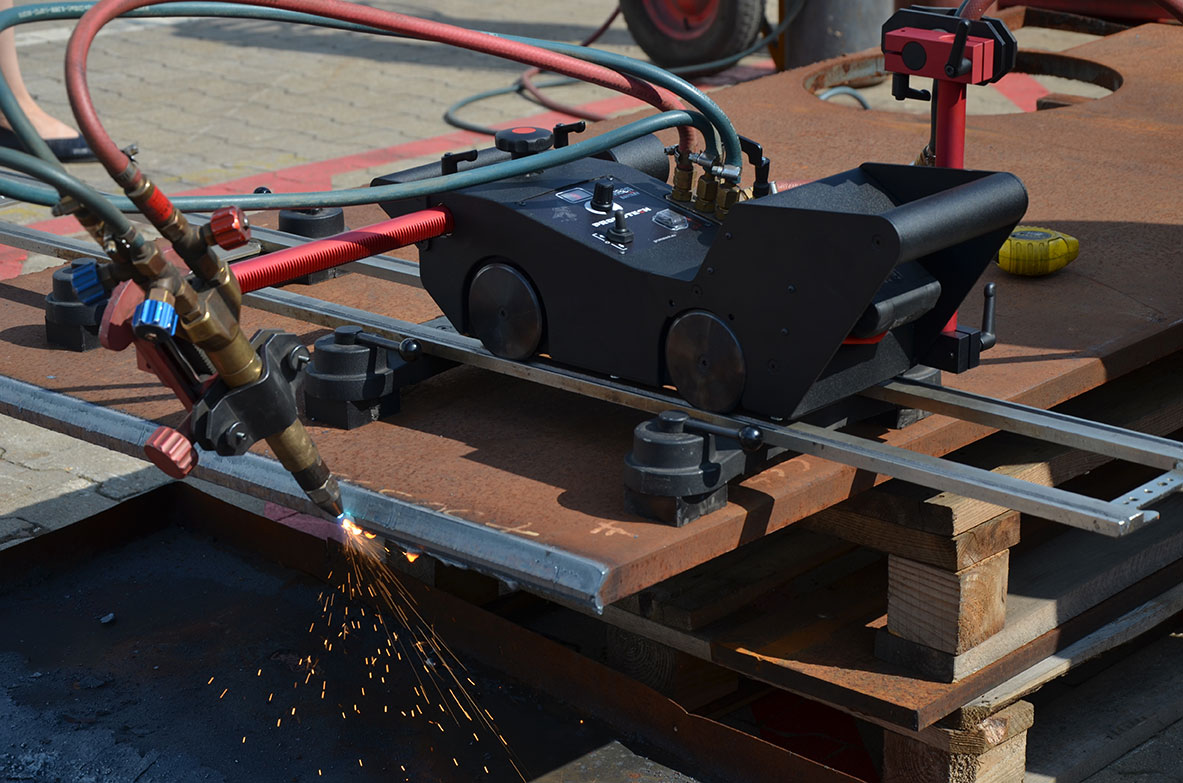

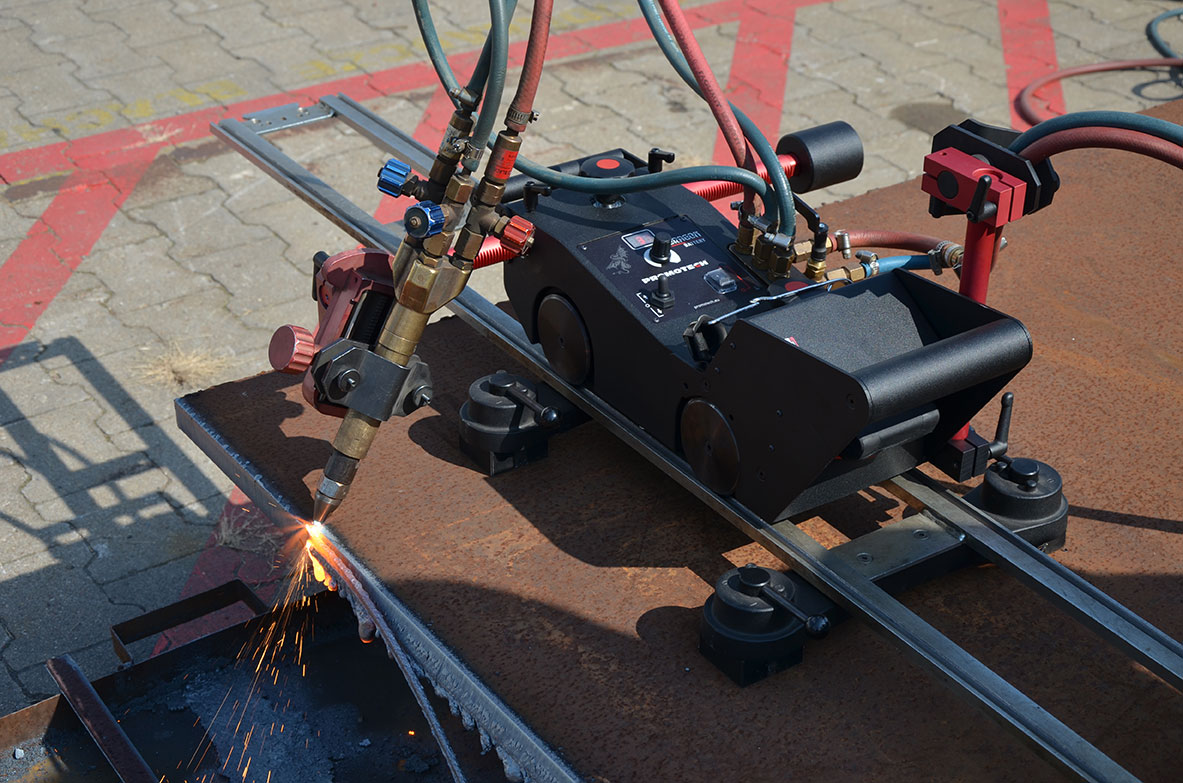

The DRAGON BATTERY is a cordless thermal cutting tractor featuring a precise, stable travel speed that produces accurate cuts and bevels. The machine can be used on any standard 6˝ V-grooved track.
The DRAGON BATTERY is powered by a LiHD (High Density Lithium-ion) battery that provides enough power to handle the most challenging applications without power cables. Intelligent battery management ensures long life and safe operation. A wide assortment of optional accessories like machine barrel torch holders, manifolds, circle-cutting attachments and
plasma kit makes it useful for a variety of applications.

  • Ideal for use in the field – no need for mains power and one less cable to carry around
  • Conveniently powered by an 18-volt DC battery (same CAS battery as other cordless PROMOTECH machines)
  • The LiHD battery, supported by intelligent battery management, ensures maximum power availability for an extended period
  • Digital speed control and stabilization for high-quality cuts
  • Cutting and bevelling up to 45° (also parallel, using 2 torches)

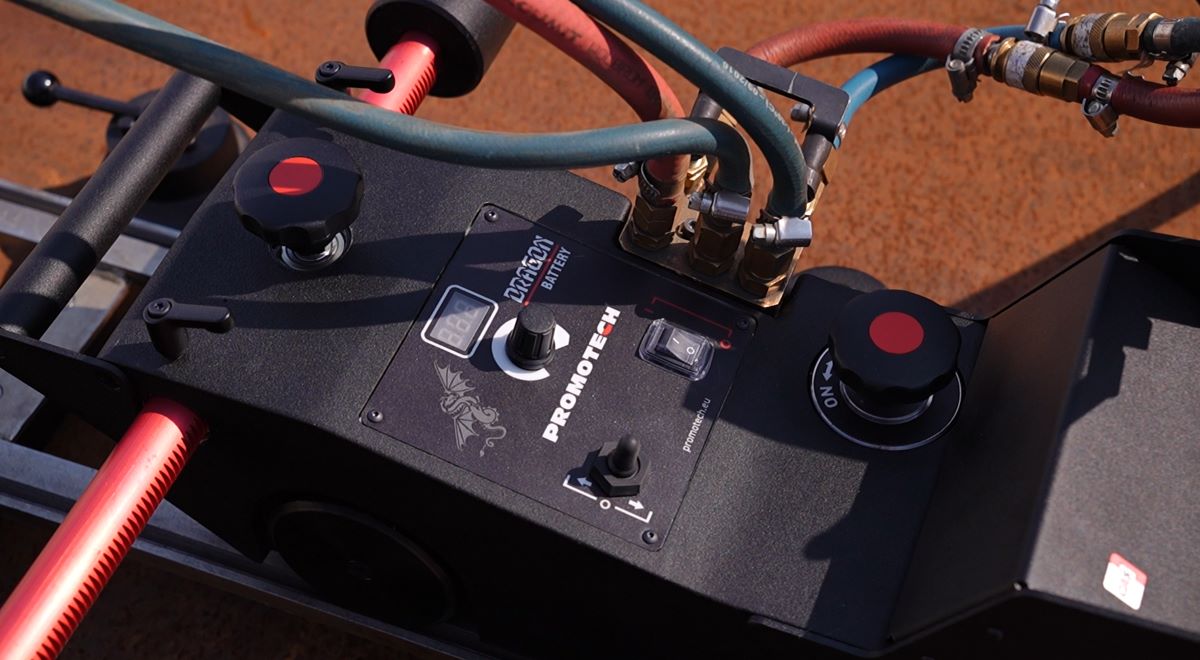

  • LED display with readouts of both actual and set speeds, as well as report messages
  • Runs on a rail or directly on a workpiece
  • 3 years of warranty

Dragon Battery | Cordless Cutting Tractor

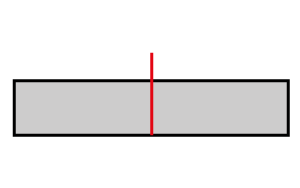

Straight cutting

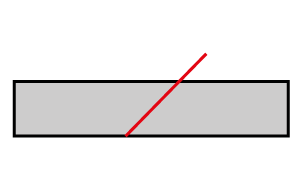

Diagonal cutting (bevelling)

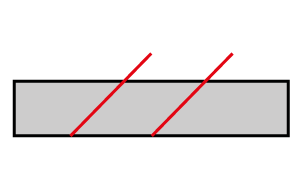

Strips cutting

Double diagonal cutting (bevelling)

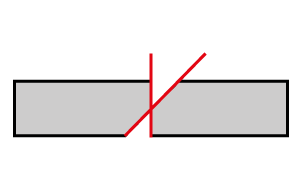

K-bevel cutting

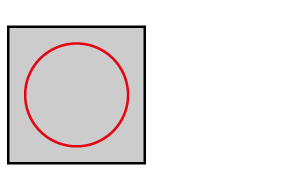

Circle Cutting

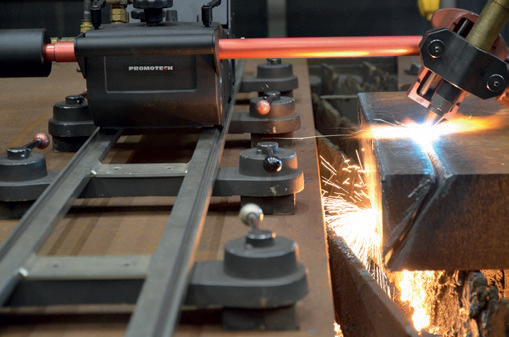

Top angled cutting

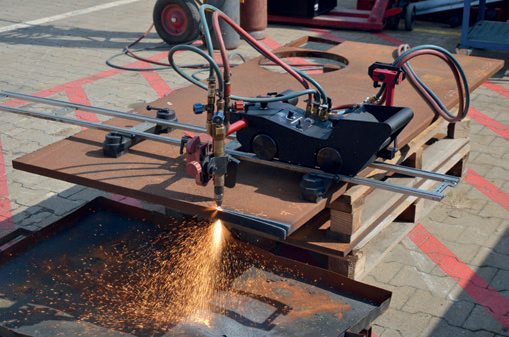

Straight cutting

Bottom angled cutting

Specification

Voltage18 V DC, 4 Ah
Power20 W
Work positionhorizontal
Torch diameter28–35 mm (1.10–1.38’’)
Ground clearance8 mm (0.31’’)
Speed0–150 cm/min
(0–59 in/min)
Weight (without battery) 15.2 kg (33.5 lbs)15.2 kg (33.5 lbs)
Protection classIP 20
Allowed ambient temperature during operation0–50°C (32–122°F)
Allowed ambient temperature during storage-10–60°C (14–140°F)
Maximum allowed ambient humidity without
condensation
80%
Product CodeWOZ-0788-10-00-00-0
