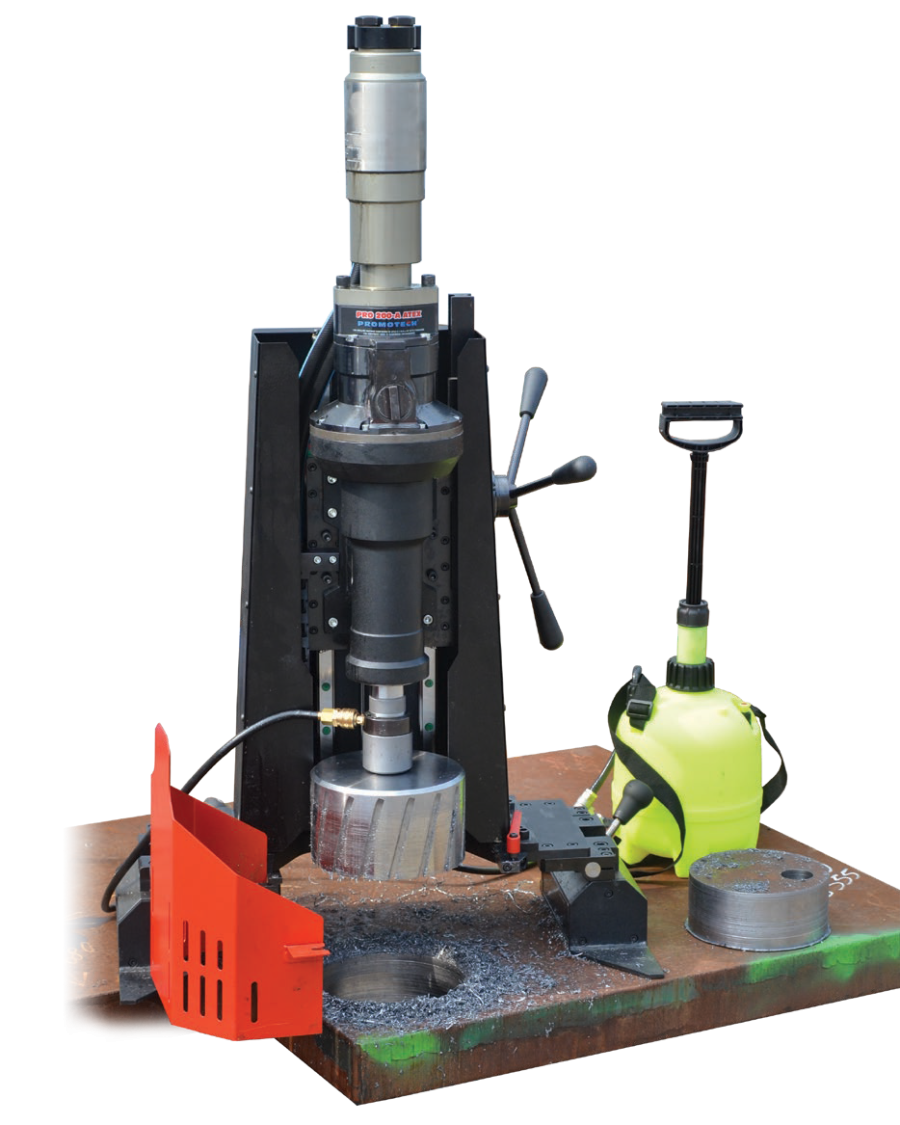

PRO-50/2 ATEX | 2-Speed Pneumatic Mag Drill

The PRO-50/2 ATEX machine has been designed to produce 50 mm holes with annular cutters and 23 mm holes with twist drill bits. The combination of a pneumatic drive and a permanent magnetic base eliminates the need for an electric power supply. This mid-sized ATEX-approved, pneumatic drill is ideal for use in confined and hazardous environments such as oil rigs, refineries, shipbuilding, and the petrochemical industry, where electric appliances are prohibited for safety reasons.

  • ATEX-approved materials. Safe for use in Ex zones and environments with hazardous, flammable, or combustible vapors, liquids, dust, or residues.
  • Strong permanent magnet. Secures the drill without the need for an electric supply.
  • Permanent magnetic base with V-shaped prismatic foot. Enables drilling on pipes from 250 mm upwards.
  • Innovative sliding ON/OFF pneumatic motor switch. Provides compressed air to the pneumatic motor.
  • Mechanical safety lock. Prevents accidental motor activation.
  • Magnet ON/OFF indicator. Enhances safety.
  • Compact size and lightweight. Ideal for site work.
  • 2-gearbox. Allows speed to be matched to the tool
  • Up to 2 years of warranty
Download PDF Download Send Enquiry Email
PRO-50/2 ATEX | 2-Speed Pneumatic Mag Drill

Core drill

50 mm

Twist Drill

23 mm

Depth of Cut

50 mm

Stroke

150 mm

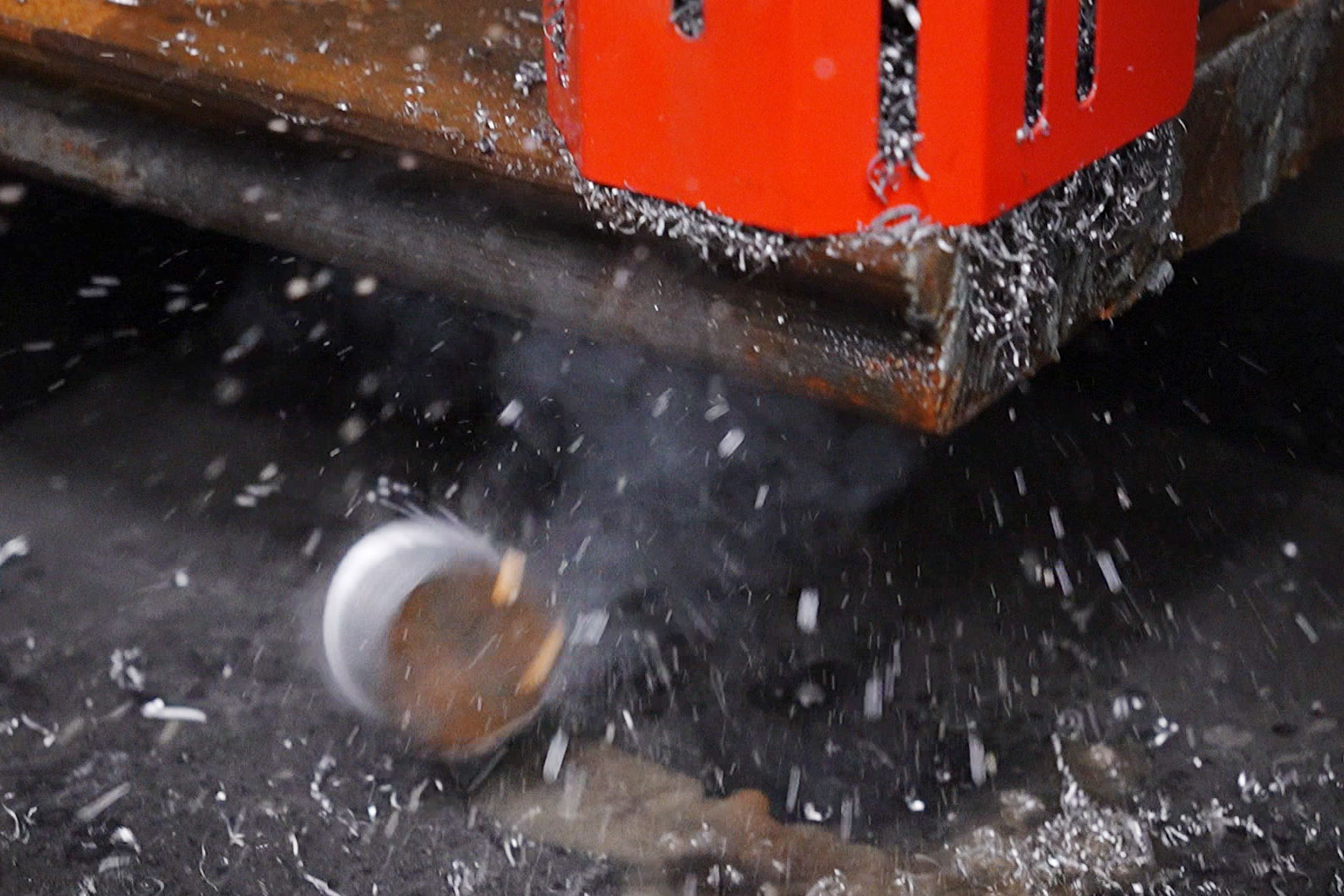

Max milling capacity 50 mm

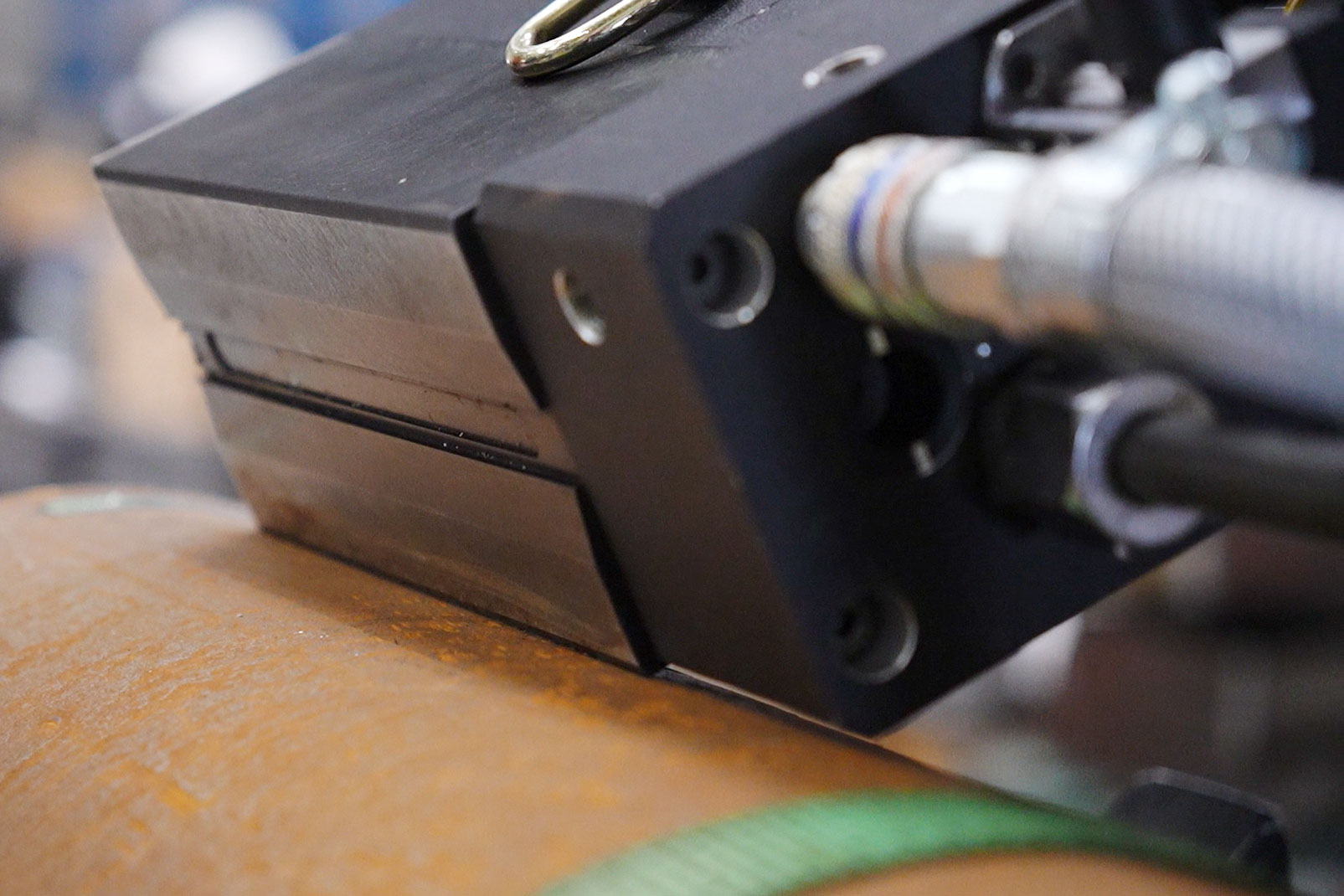

V-shaped prismatic mag base for pipe drilling

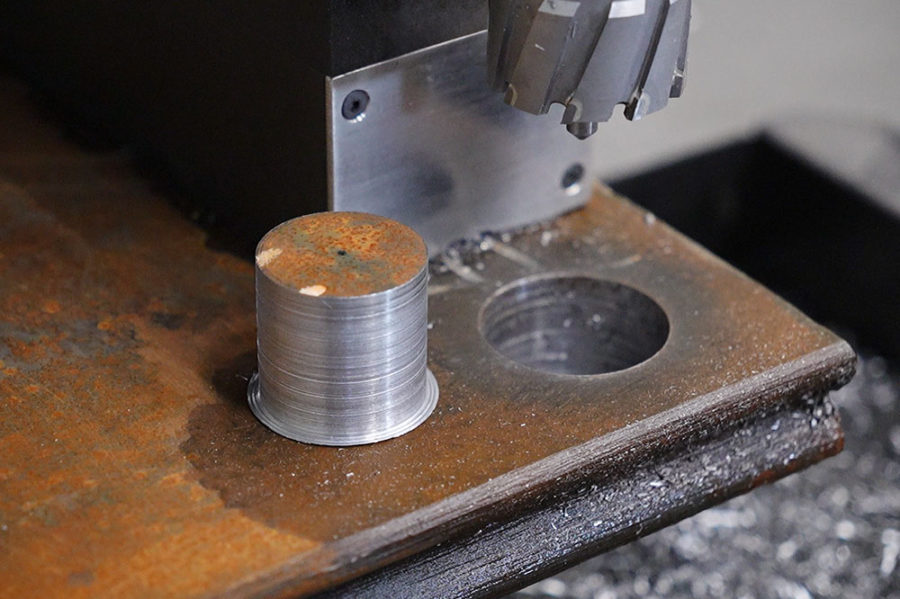

Max depth of cut 50 mm

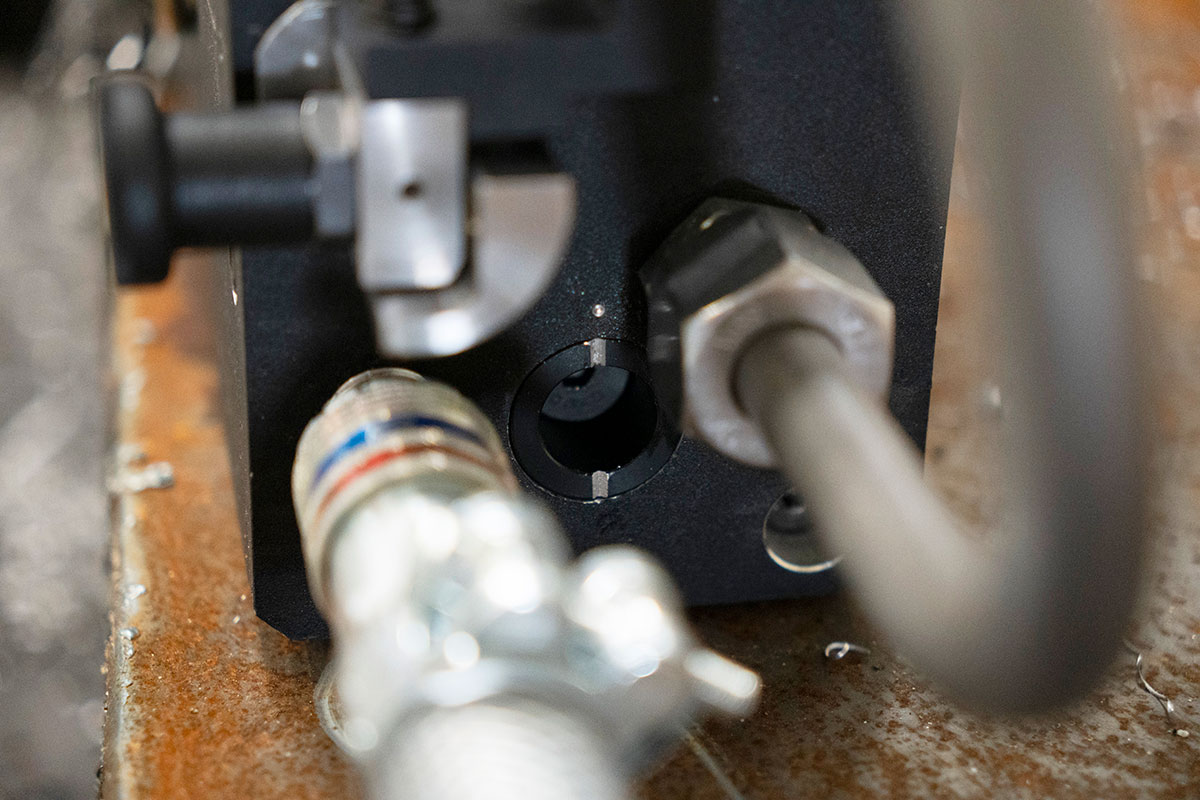

Clamping level indicator for safety and security

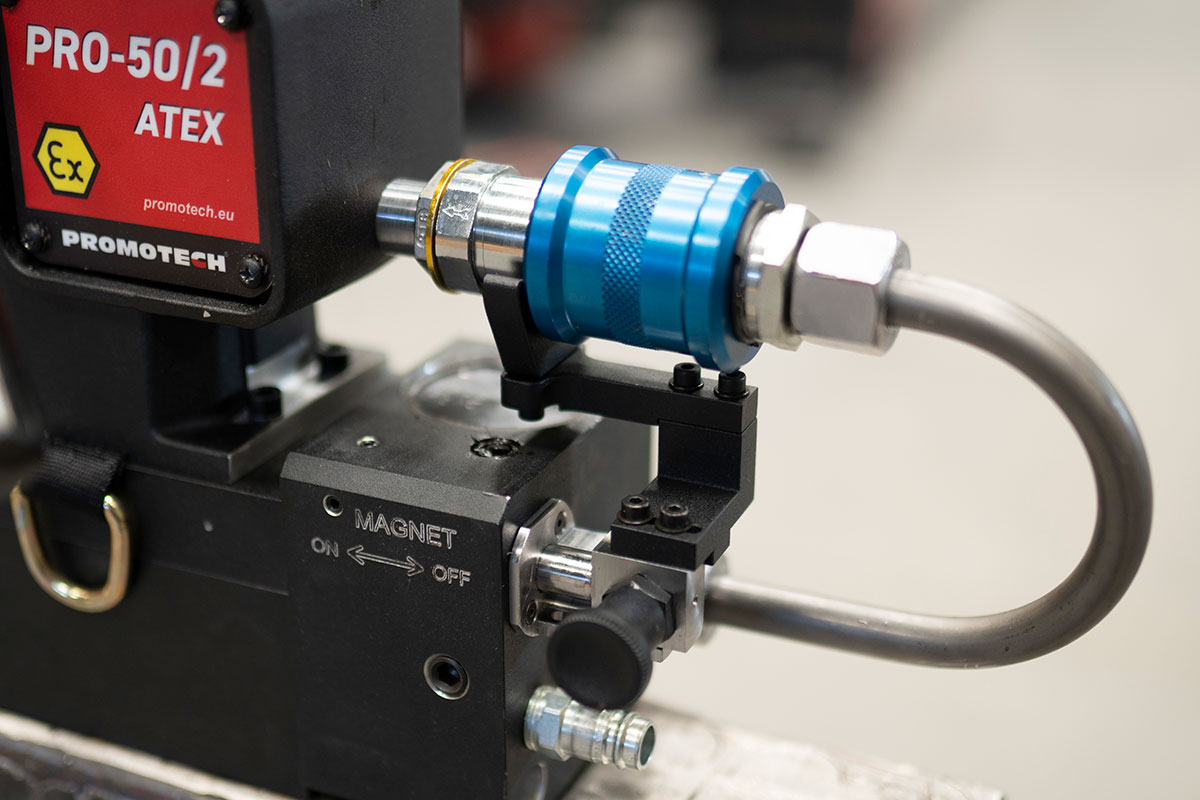

Protection against accidental motor start-up when the magnetic base is not activated

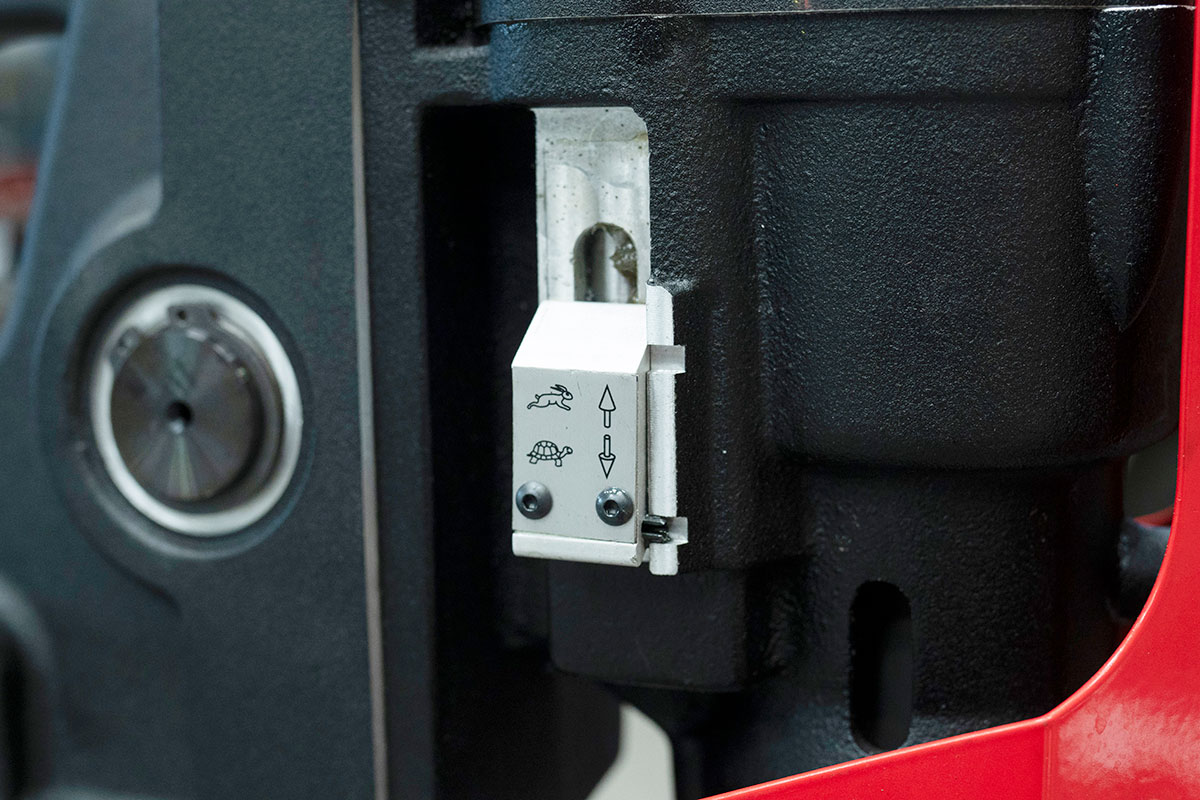

2-gearbox to match the speed to the tool

Specification

Motor speed (under load)190 rpm (gear I)
290 rpm (gear II)
Motor power800 W
Weight24,5 kg
Max milling capacity50 mm (2")
Max drilling capacity23 mm (13/16’’)
Stroke150 mm
Max depth of cut50 mm (2")
Tool holder19 mm (3/4”) Weldon
Air consumption1400 l/min (50 CFM)
Pressure6 bar (87 psi)
Air connectionCEJN 410 DN 10.4 R 3/8”
BSPT fitting for quick coupling
SpindleMT2
Minimum diameter of air hoses13 mm (33/64”)
Required ambient temperature0 – 40 °C (32 – 104 °F)
Minimum workpiece thickness10 mm (25/64”)
Minimum pipe diameter*250 mm (9 27/32”)
Magnetic base holding force
(surface with the thickness of 25 mm and roughness Ra = 1.25)		968 kgf (9500 N)
Magnetic base dimensions90 mm x 192,5 mm x 66,5 mm
Potentially explosive atmosphereII 2G Ex h IIC 135⁰C (T4) Gb
II 2D Ex h IIIB T135⁰C Db
Overall dimensions L x W x H487 mm x 186 mm x 790 mm
* always check the clamping of the magnetic base using the indicator
